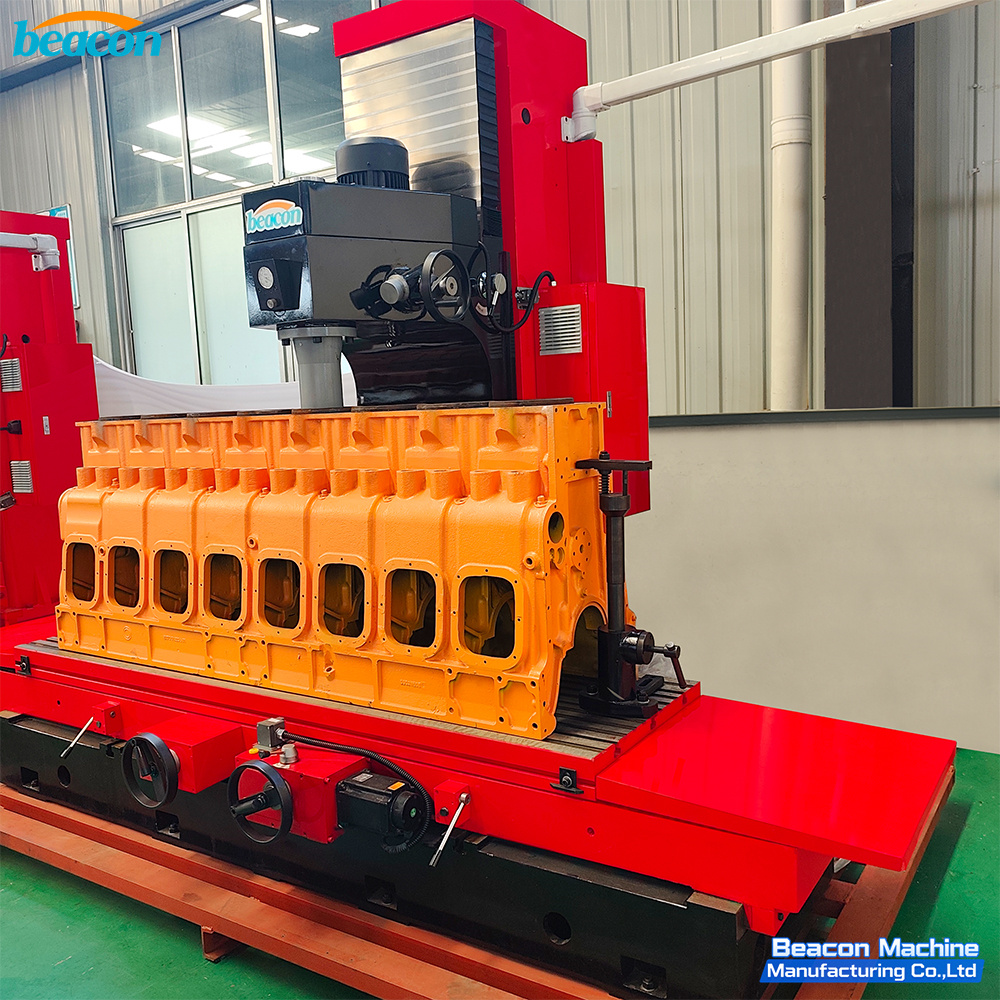

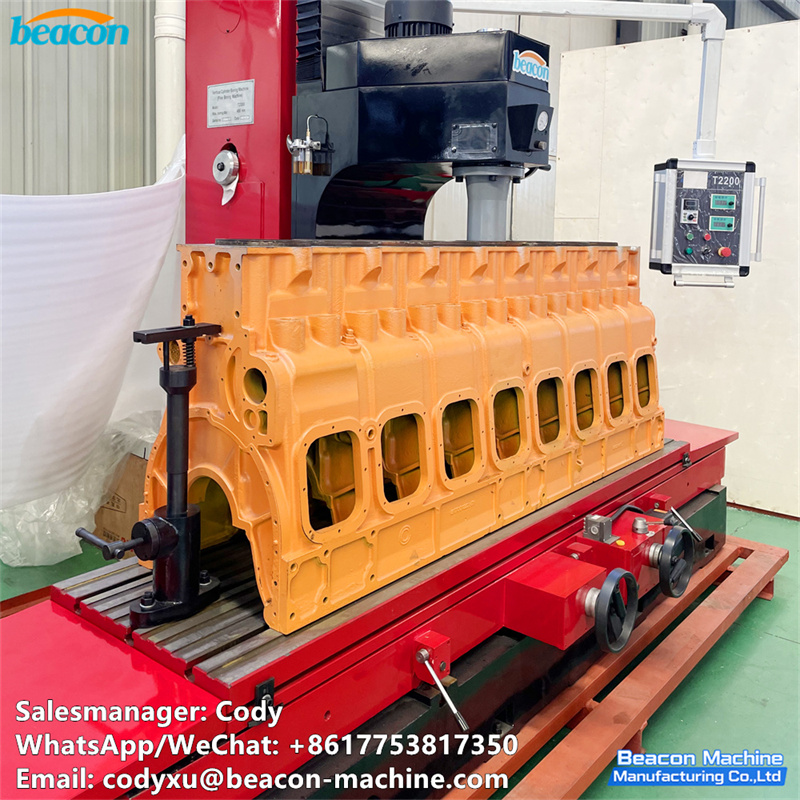

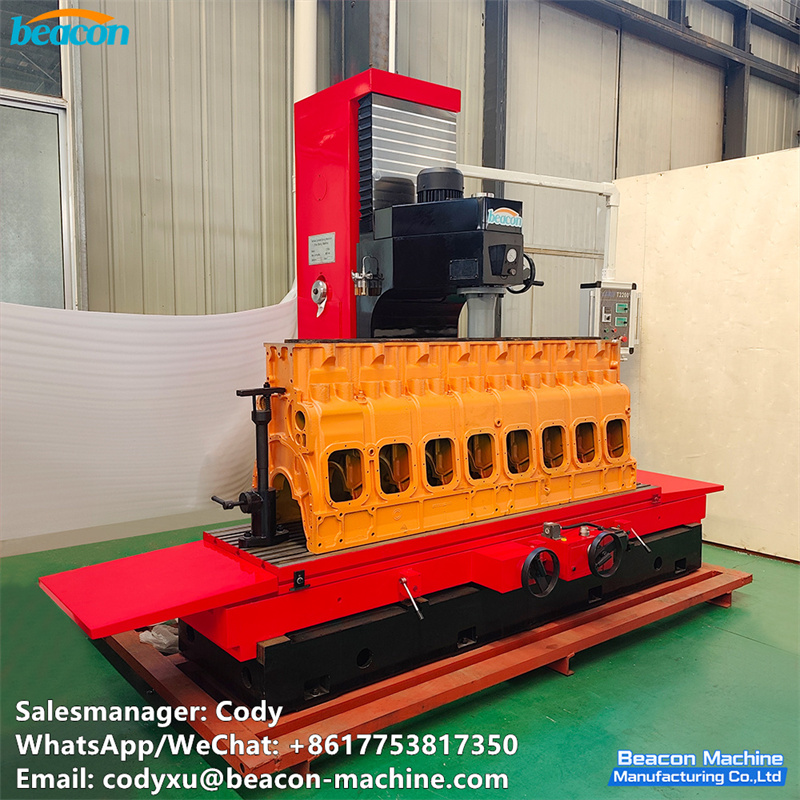

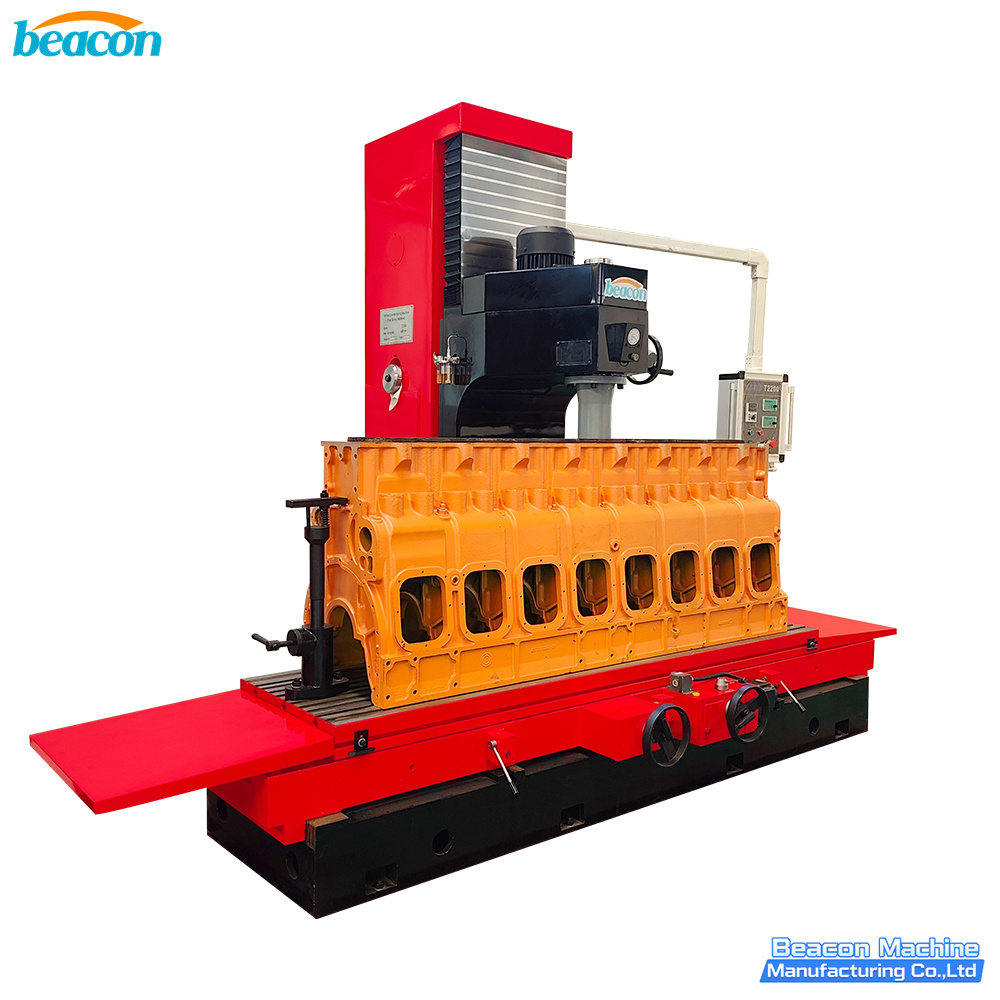

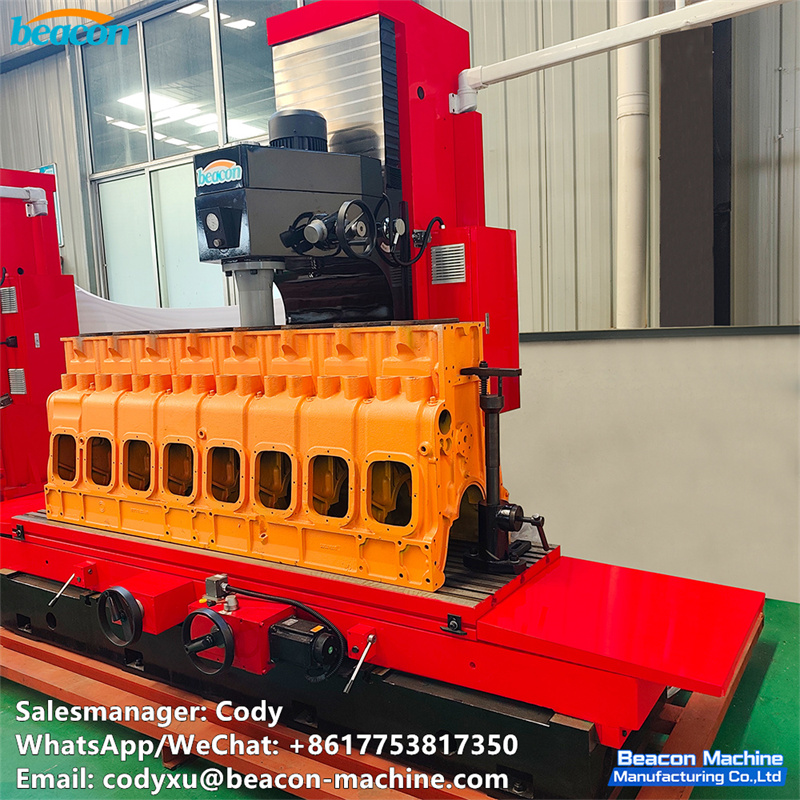

The Beacon T2200 Cylinder Boring Machine is a heavy-duty industrial solution engineered for precision boring of cylinder holes and cylinder liner inner holes in large internal combustion engines, heavy vehicles, tractors, and marine vessels.
Tel:0086-18253885135
Email: info@beacon-machine.com

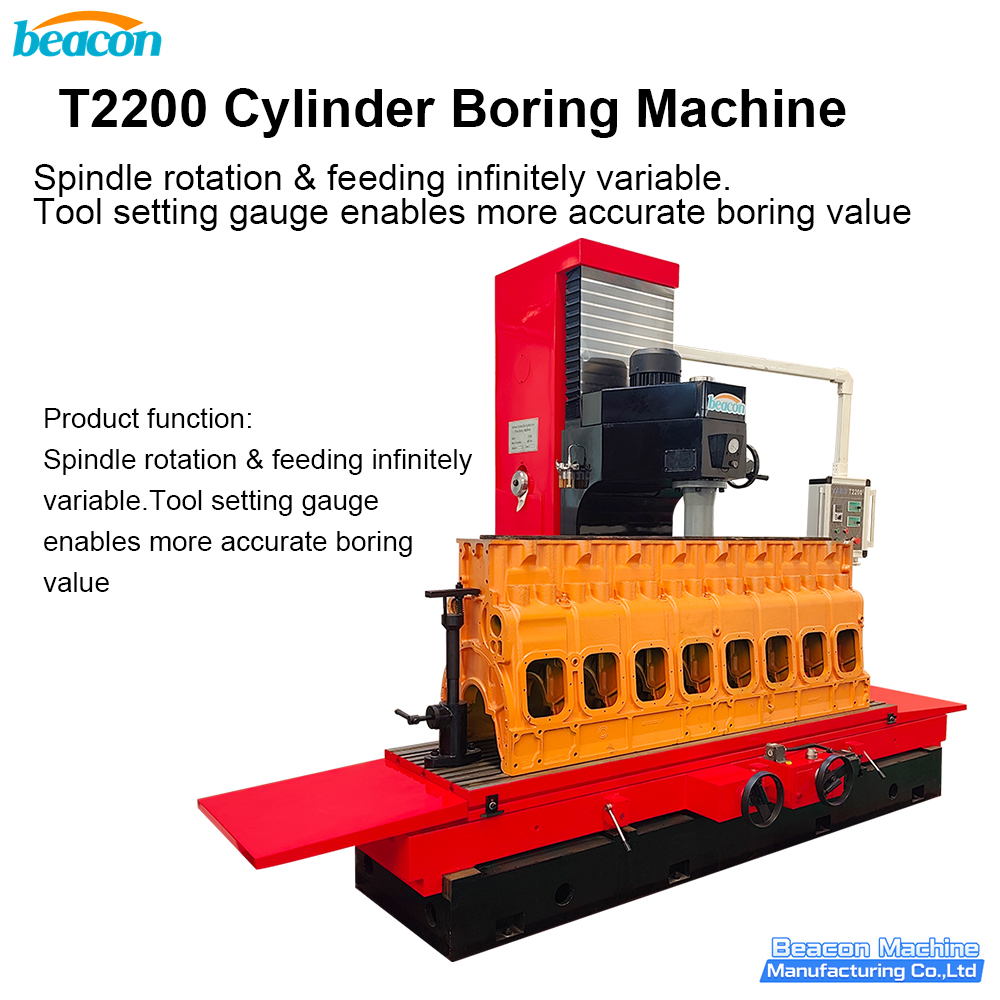

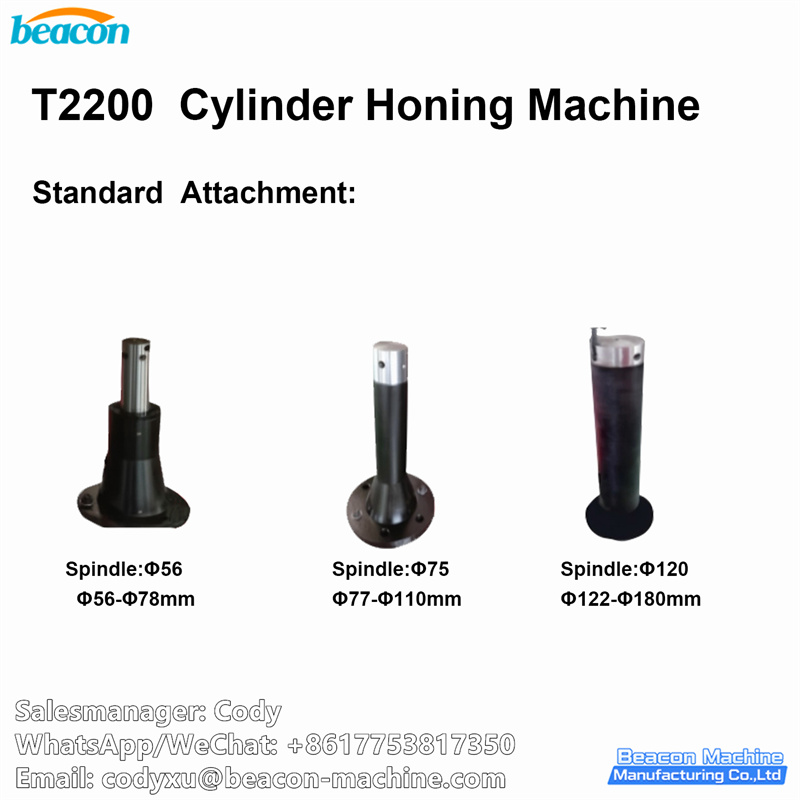

Designed for professional engine rebuilding workshops and maintenance facilities, it features infinitely variable spindle rotation and feeding, paired with an accurate tool setting gauge to ensure precise boring values. With a robust structure, versatile spindle attachments, and a large working table, it delivers reliable performance for demanding applications in heavy-duty engine repair.

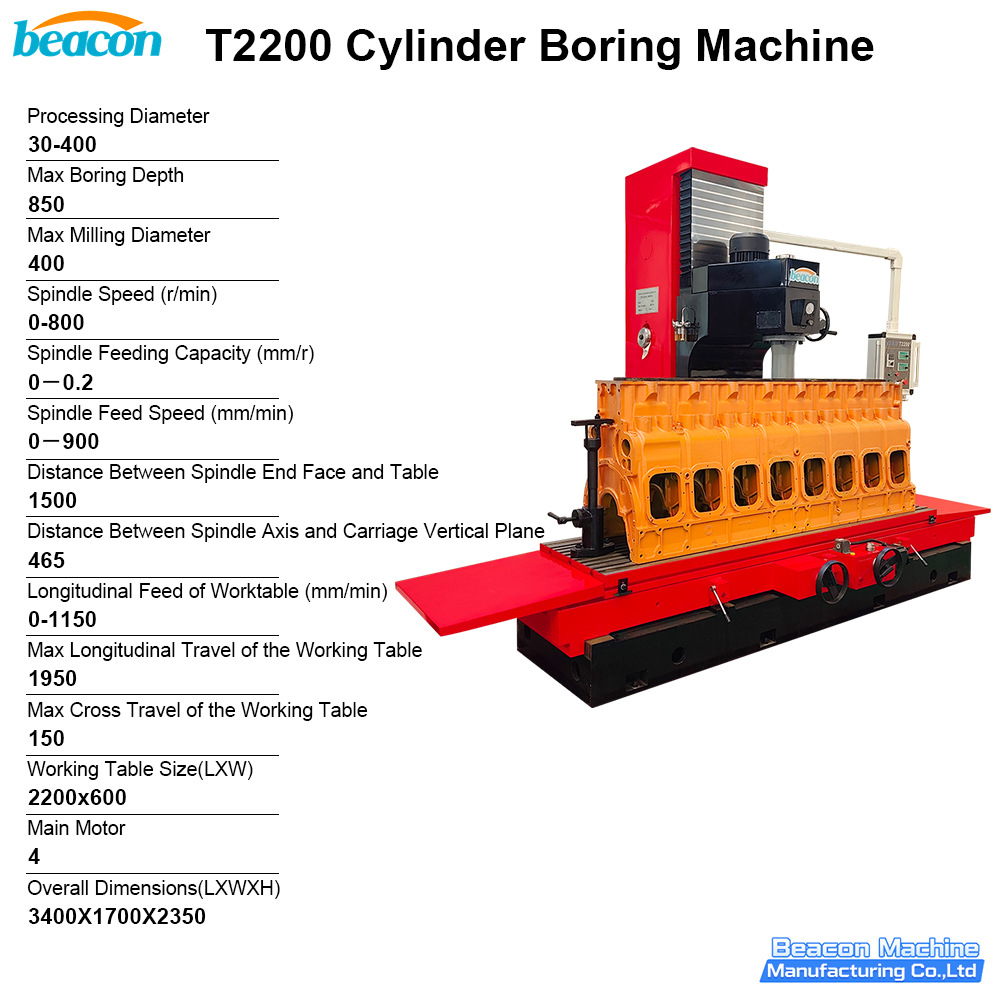

Parameter Specification
Processing Diameter 30-400 mm
Max Boring Depth 850 mm
Max Milling Diameter 400 mm
Spindle Speed 0-800 r/min
Spindle Feeding Capacity 0-0.2 mm/r
Spindle Feed Speed 0-900 mm/min
Distance Between Spindle End Face and Table 1500 mm
Distance Between Spindle Axis and Carriage Vertical Plane 465 mm
Longitudinal Feed of Worktable 0-1150 mm/min
Max Longitudinal Travel of the Working Table 1950 mm
Max Cross Travel of the Working Table 150 mm
Working Table Size (L×W) 2200×600 mm
Main Motor Power 4 kW
Overall Dimensions (L×W×H) 3400×1700×2350 mm
