G7-4 Cylinder Pressure Gauge Diesel Engine Cylinders Compression Tester Kit
Features:
Use this tool kit to identify worn valves and piston rings of most diesel cars, trucks and tracktors.

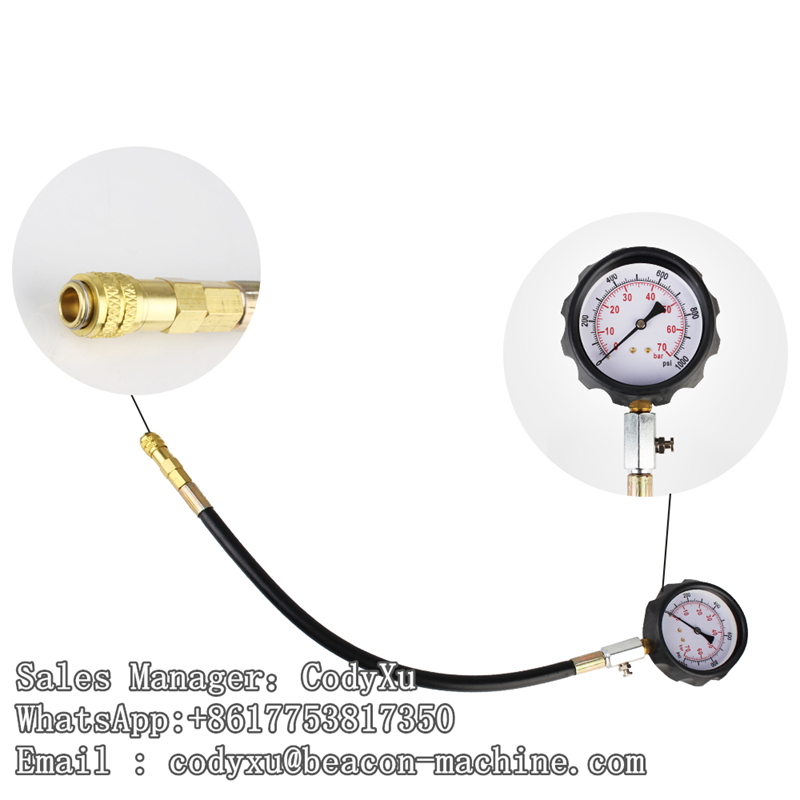

The gauge has a range of 0-70 Bar/0-1000 Psi.
Description:
This compression testing set has fittings for replacing injectors and glow plugs
Quick release pull down coupler for a quick change between hoses and adapters.
Specification:
Engine Type:Diesel Maximum
PSI:1000 PSI
Type:Compression Tester
inquiry nowIntroduction

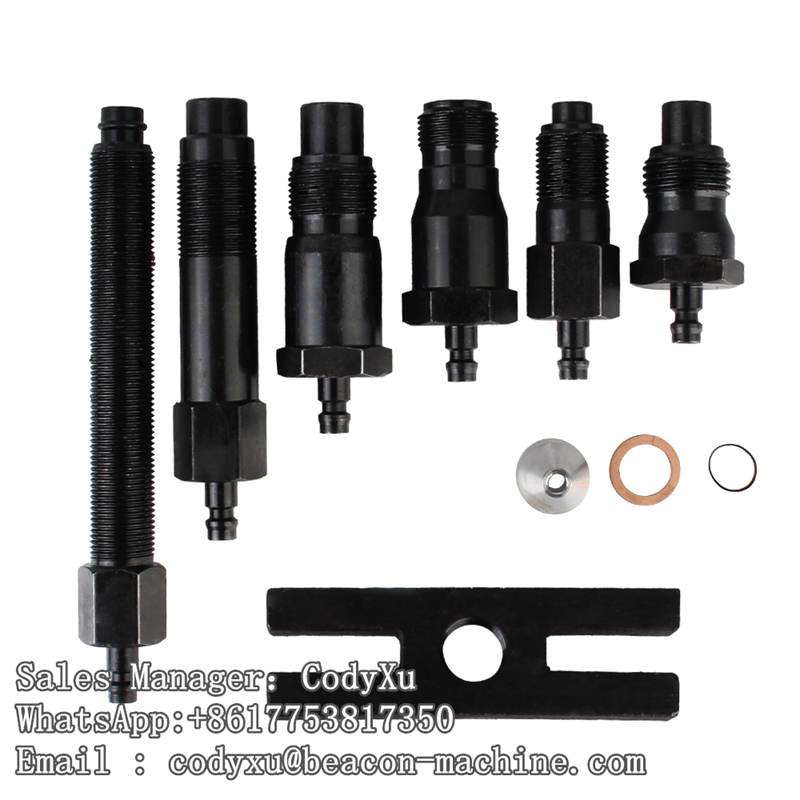

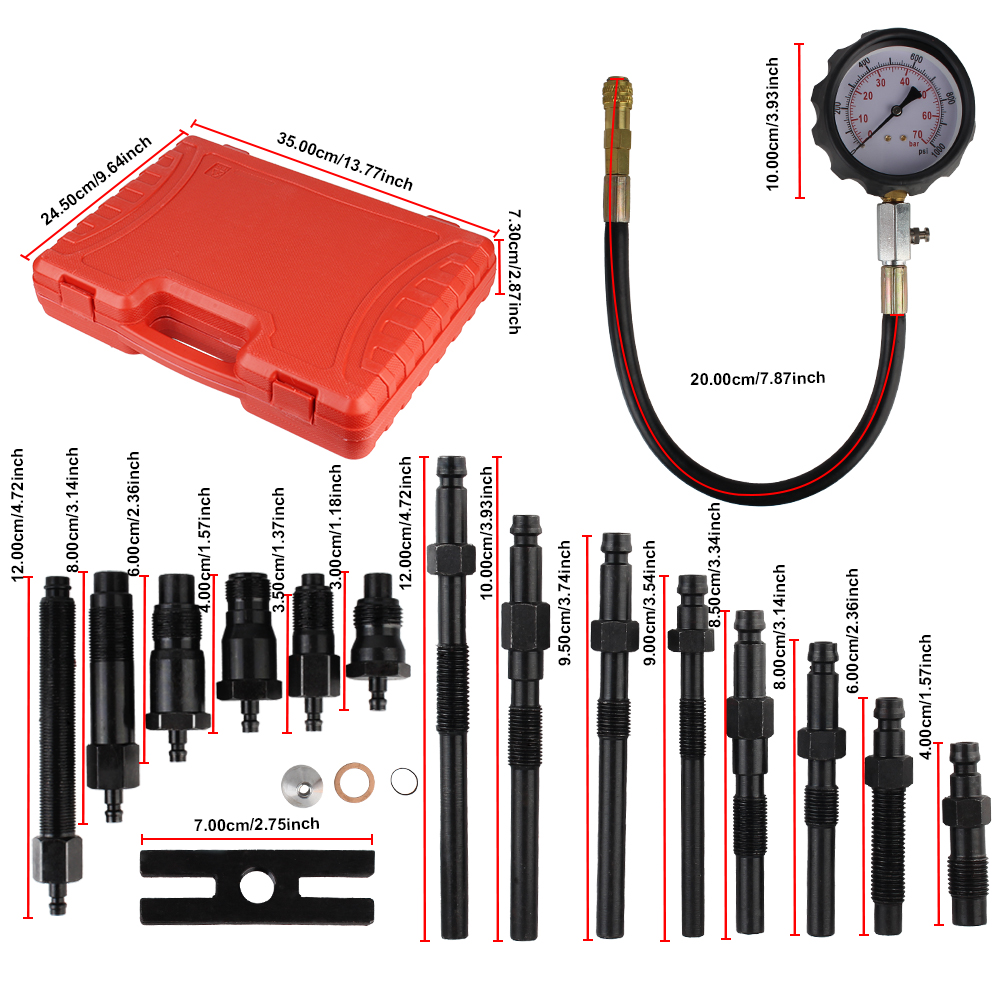

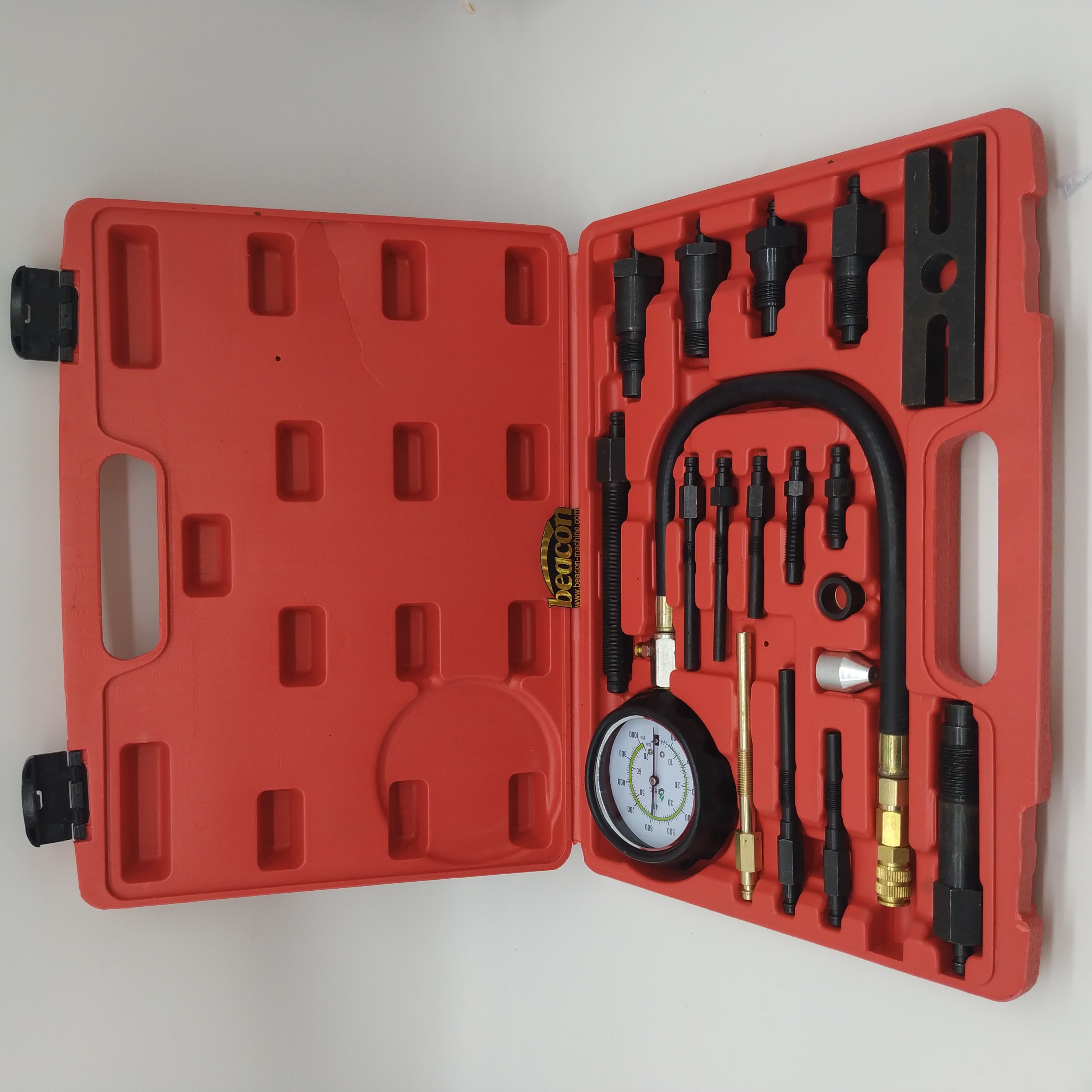

Package List:
1. Glow Plug Adaptor 91mm M10x1.00
2. Glow Plug Adaptor 119mm M10x1.00
3. Glow Plug Adaptor 135mm M10x1.25
4. Glow Plug Adaptor 118mm M22x1.50
5. Dial Gauge 340mm
6. Glow Plug Adaptor 113mm M10x1.00
7. Glow Plug Adaptor 102mm M8x1.00
8. Glow Plug Adaptor 83mm M10x1.00
9. Glow Plug Adaptor 64mm M10x1.25
10. Glow Plug Adaptor 47mm M12x1.25
11. Screw Adaptor 160mm
12. Injector Adaptor 88mm M24x1.50
13. Injector Adaptor 73mm M22x1.50
14. Injector Adaptor 63mm M24x2.00
15. Injector Adaptor 75mm M20x1.50
16. H Fitting
17. Pressure Relief Valve
18. Storage Case
19. An instruction sheet
