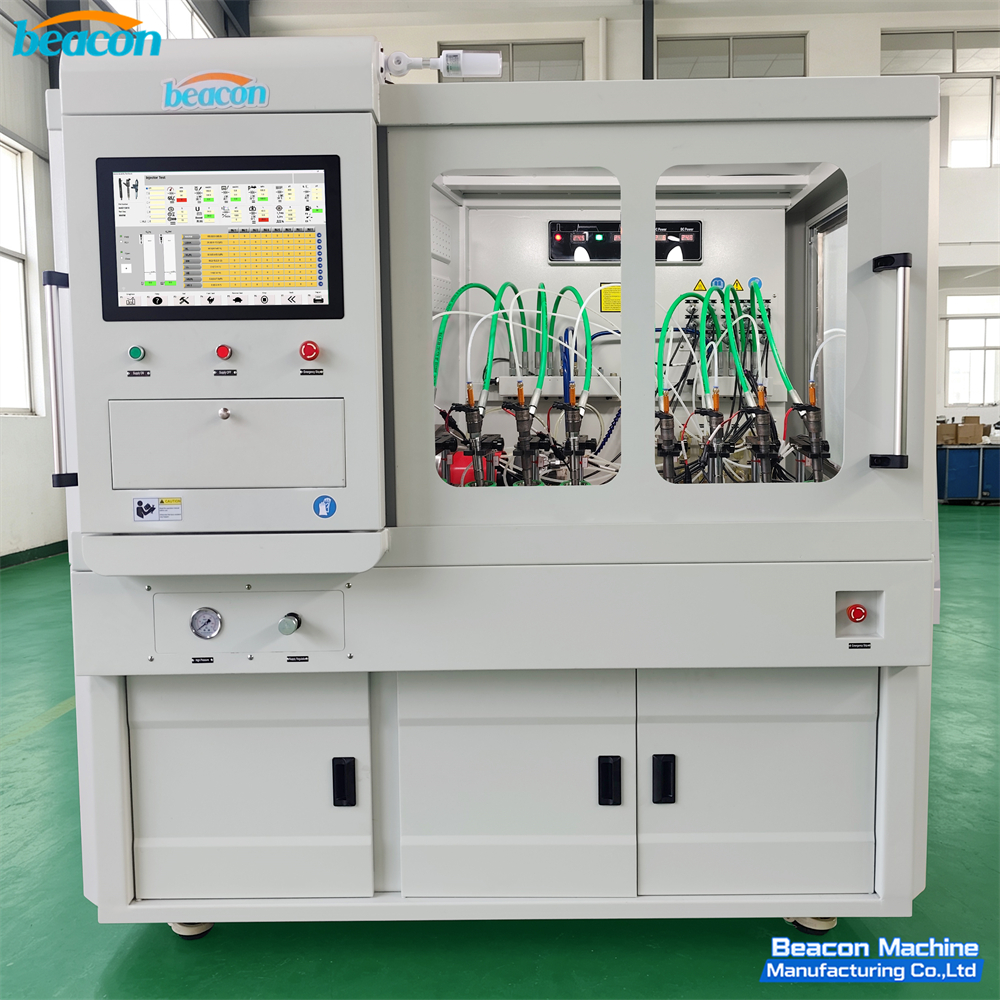

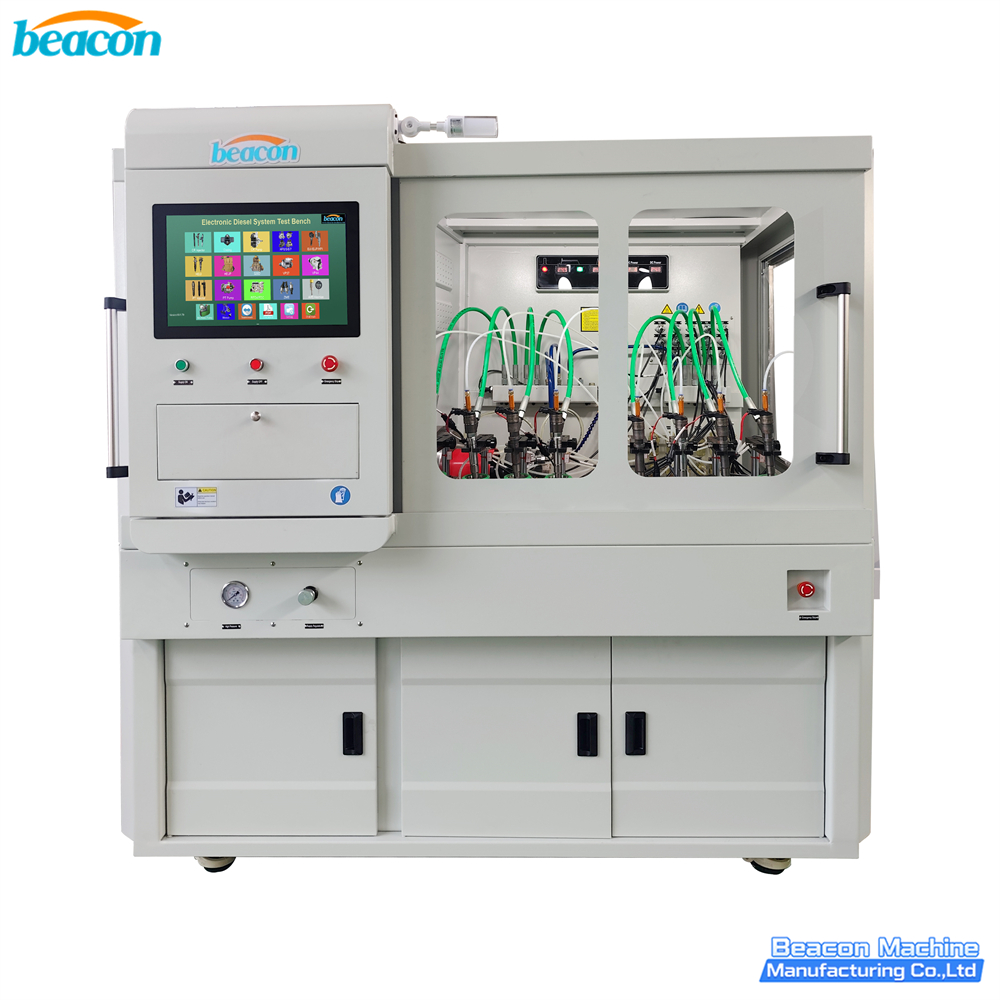

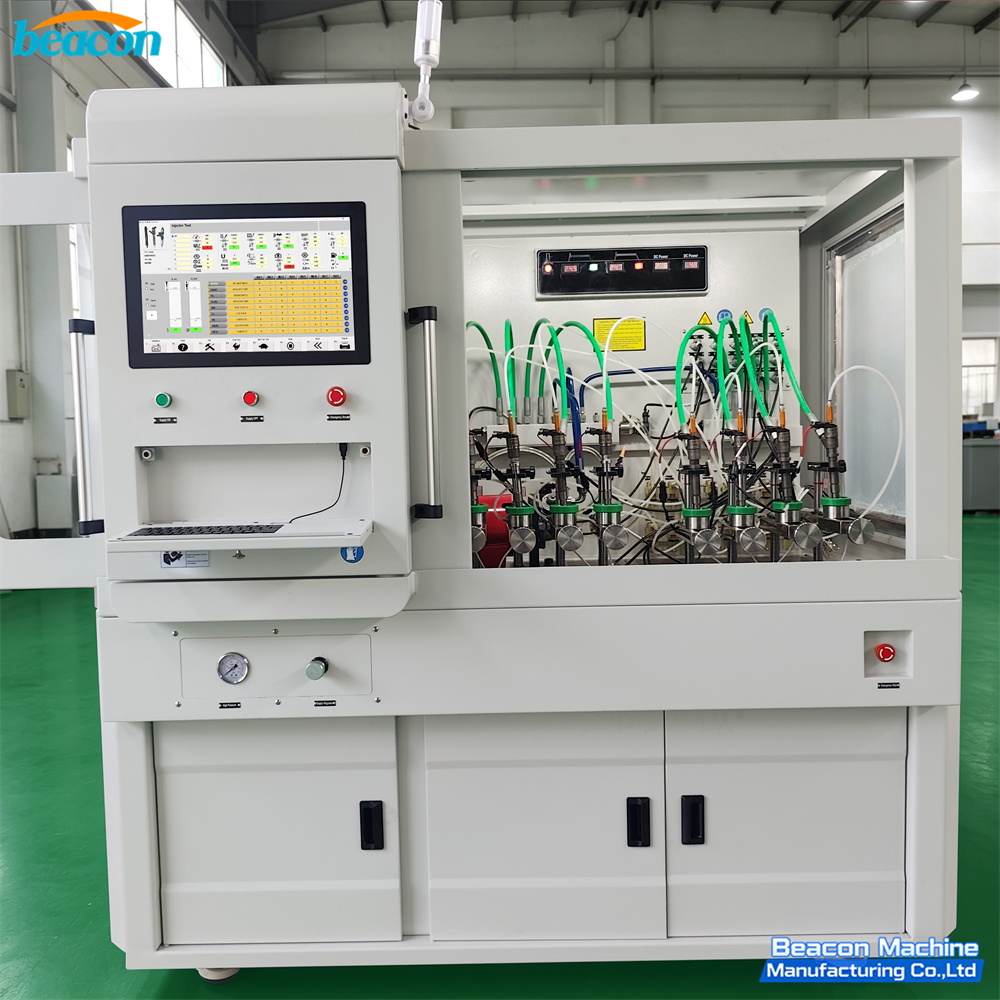

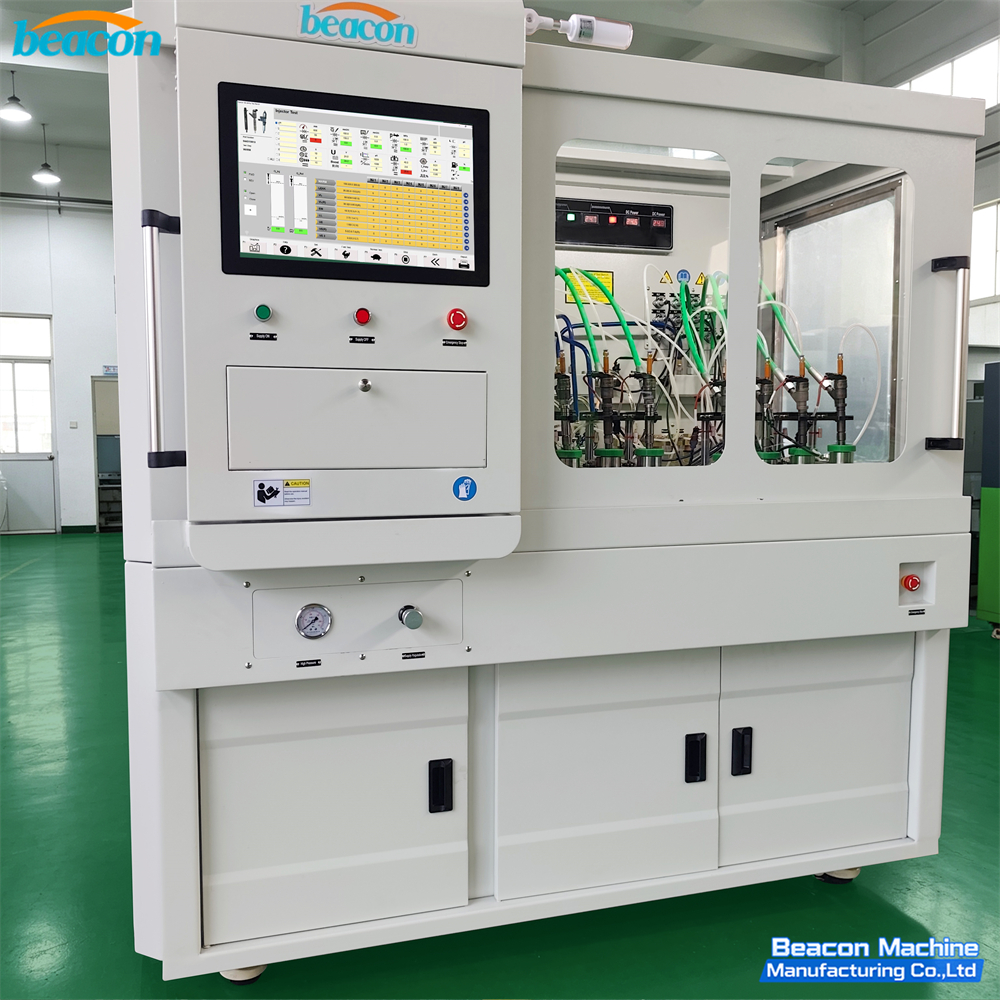

BC-NJ Common Rail Injector Test Bench Diesel Fuel Injection Endurance Test Stand Equipment

Tel:0086-18253885135

Introduction

1.High-Precision Testing: Advanced electronic measuring systems ensure high accuracy in delivery quantity, return flow, and response time testing.
2.Continuous Endurance Testing: Designed for long-duration, high-workload endurance cycles to test injector durability and fatigue limits under high-pressure environments.
3.Multi-Injector Compatibility: Capable of testing multiple injectors simultaneously or individually, significantly improving diagnostic efficiency for busy workshops.
4.Intelligent Control System: Features a clear digital interface with real-time data monitoring, automated testing procedures, and quick database updates.
5.Safety & Stability: Built-in overpressure protection, temperatur

parameter

Main Technical Parameters: 1/Model: BC-NJ Common Rail Injector Endurance Test Bench

2/Common rail pump drive power: 11 kW

3/ Max quantity of running-in injectors: 8 pcs

4/ Pump-end maximum oil supply pressure: 300 MPa

5/ Fuel tank temperature control range: 40℃-50℃

6/ Cooling method: Forced cooling refrigeration unit

7/ Test medium: ISO4113 standard pump oil / JB-1 standard pump oil

8/ Rail pressure sensor: Range 0-350 MPa; Accuracy 0.5%
